Gantt Charts

Available from Version: -

Operating System: Windows

empower® Add-in: Chart Creation

Gantt charts are usually used in project management context. They can be used to display the timeline of a project as well as its status.

To insert a Gantt chart into your presentation, navigate to the group empower and click on the button Insert Chart (Figure 834, “Button Insert Chart”).

Figure 834. Button Insert Chart

Button Insert Chart

Then, click on the option Gantt under Other (Figure 835, “Option Gantt”).

You can now define the area and size of the Gantt chart on your current slide.

To do so, drag and drop your mouse cursor over the respective area.

After the insertion of the chart, the Gantt chart settings open in a new window.

Figure 835. Option Gantt

Option Gantt

Note

Alternatively, you can select a placeholder you want to use for the chart and then click on the option Gantt. The Gantt chart will be inserted into the selected placeholder, adjusting to its size.

Note

If you want to adjust the size of the Gantt chart later on, select the chart and drag its endpoints to your preferred size.

If you reduce the Gantt chart's size, you may receive a notification that the font size has been adjusted automatically. To revert these changes, click on the button Revert.

Adjust Gantt Chart Settings

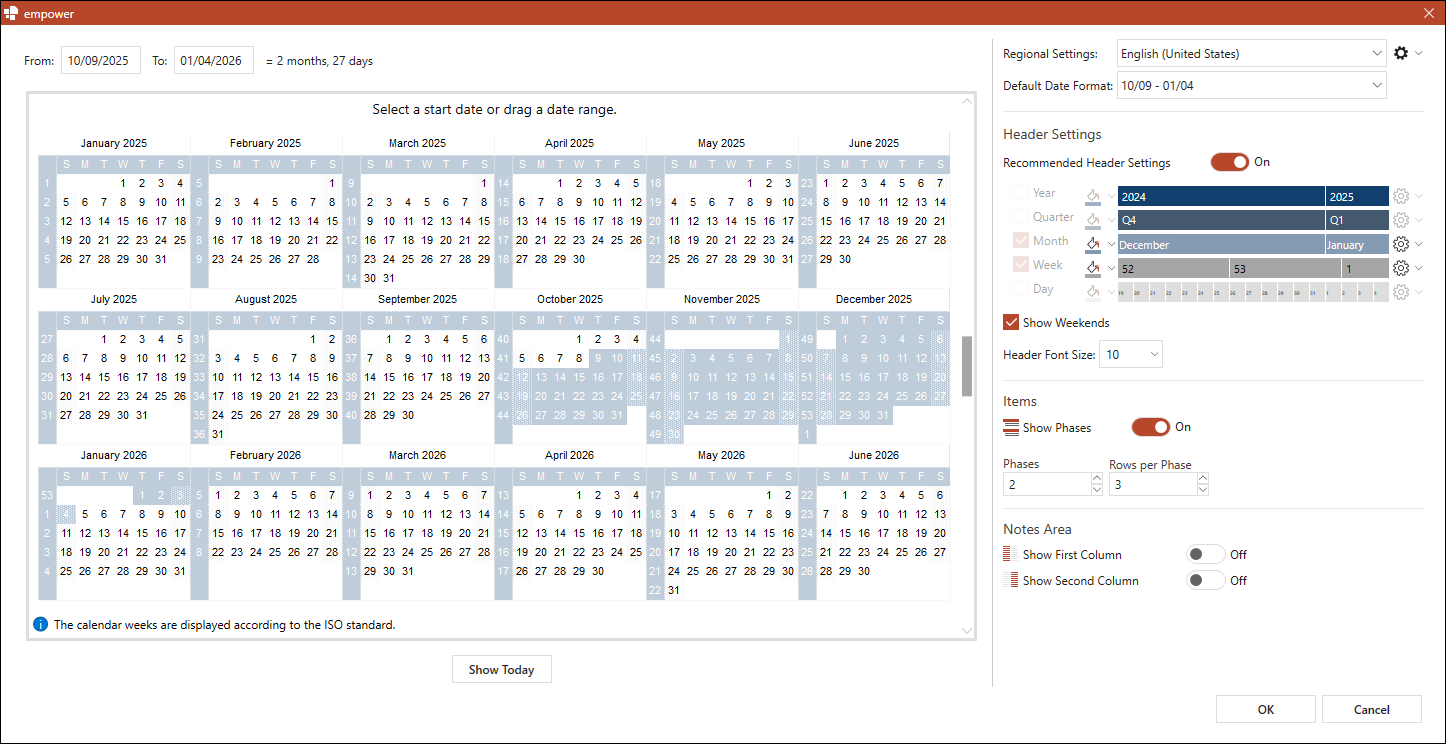

On the left-hand side of window, you can use the calendar to define the time span you want to display in the Gantt Chart (Figure 836, “Gantt Chart Settings”).

On the right-hand side, you can adjust the default settings for your Gantt chart.

Figure 836. Gantt Chart Settings

Gantt Chart Settings

Here, you can make changes to the regional settings, the header settings, the content and the notes section.

Note

If you want to adjust these settings after the initial insertion of the Gantt chart, you can access the calendar and regional settings by clicking on the date displayed in the action bar and the notes section settings via the button Properties in the action bar.

Define the Time Span

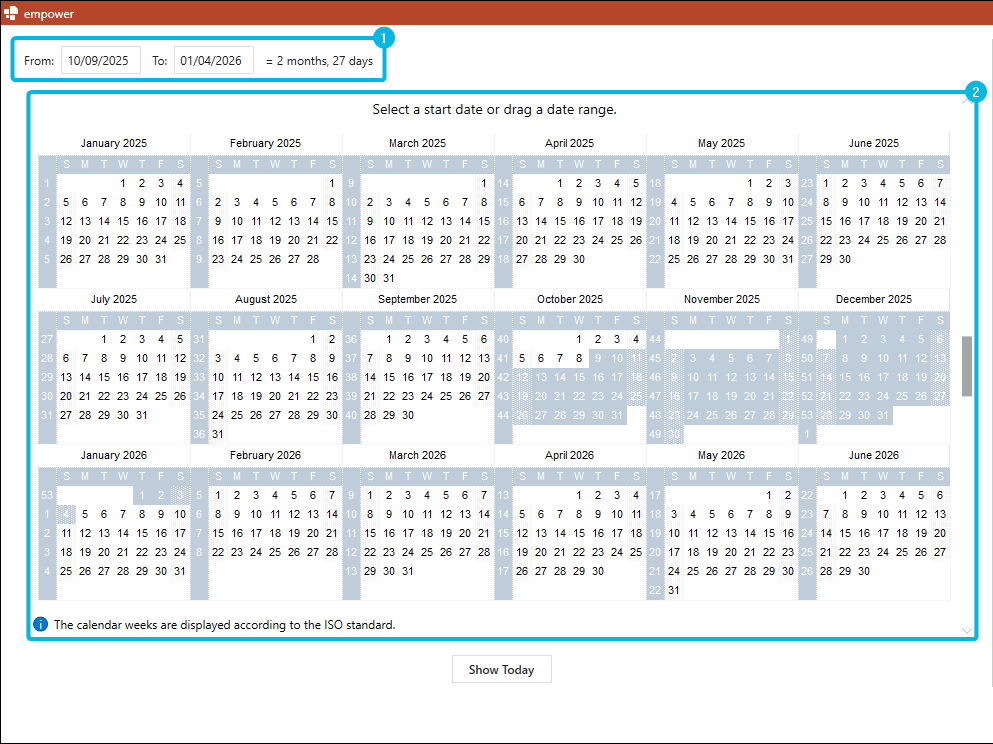

To define the time span that should be displayed in your Gantt chart, either type in the dates into the input fields on the top or select start and end date in the calendar (Figure 837, “Set Time Span”).

Alternatively, you can drag and drop from start date to end date. If you drag your mouse below the calendar, the calendar will scroll automatically.

Figure 837. Set Time Span

Set Time Span

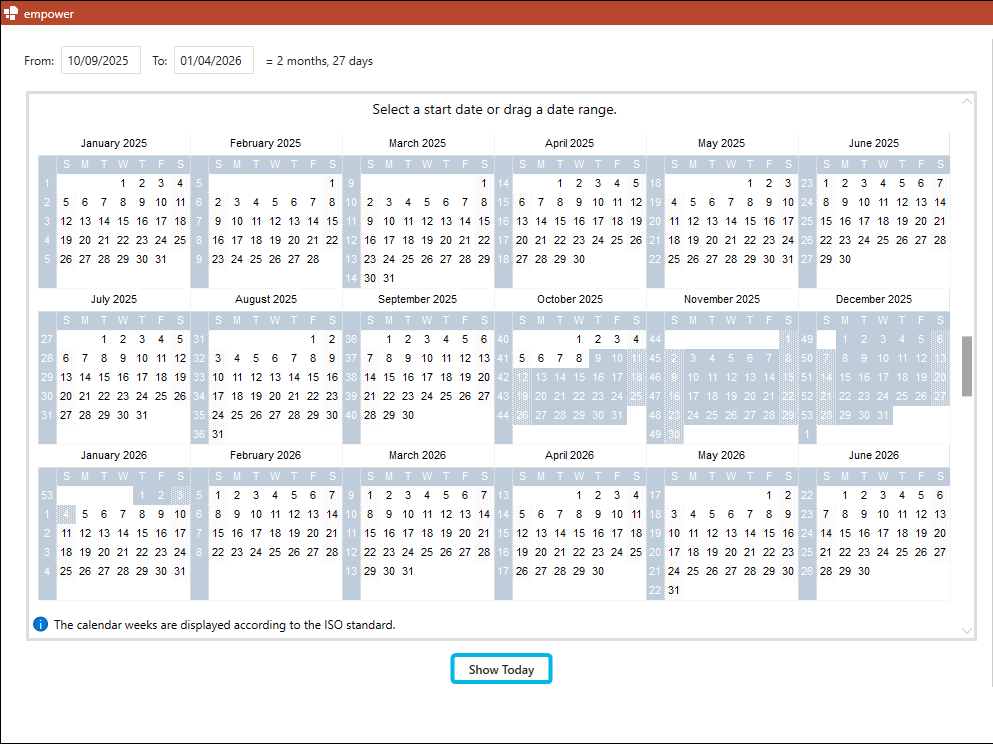

To jump back to the current date, click on the button Show Today (Figure 838, “Button Show Today”).

Figure 838. Button Show Today

Button Show Today

Note

The current date is not automatically selected when you click on the button Show Today to avoid affecting the date range you have selected for the Gantt chart.

Adjust Default Settings

On the right-hand side, you can make adjustments to the default settings for Gantt charts.

To make changes to the regional settings, follow the following steps:

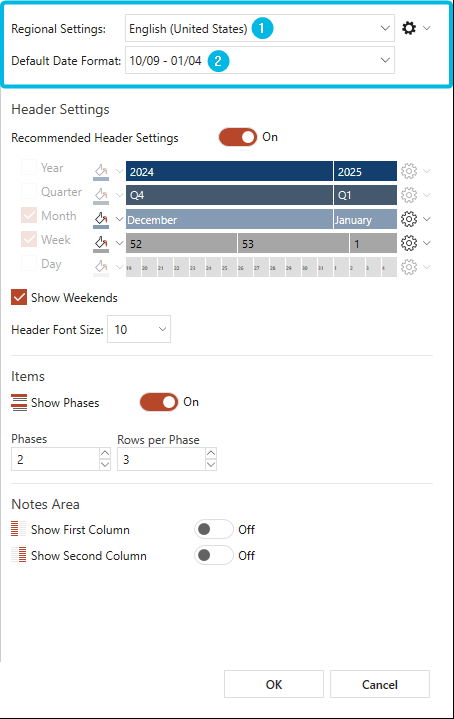

  1. To select your regional settings, expand the drop-down menu for Regional Settings and choose the region your Gantt chart should comply with (Figure 839, “Regional Settings and Date Format” (1)).

Figure 839. Regional Settings and Date Format

Regional Settings and Date Format

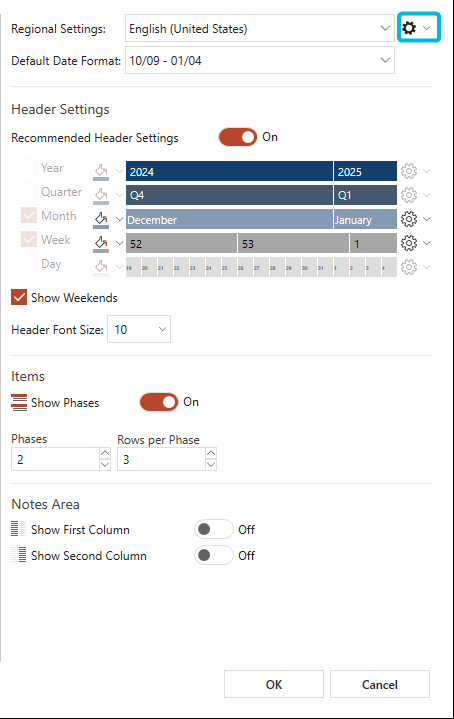

  1. To change the week start and weekend settings, click on the gear symbol (Figure 840, “Gear Symbol for Regional Settings”).

    Here, you can decide which days should be displayed as the first day of the week and as weekends.

Figure 840. Gear Symbol for Regional Settings

Gear Symbol for Regional Settings

  1. To choose your preferred date format, expand the drop-down menu for Default Date Format and choose the format you want to use (Figure 839, “Regional Settings and Date Format” (2)).

    The available formats depend on the selected regional settings.

Note

If the regional setting International is used, the Gantt chart will be displayed in the current Office language.

Note

For further information regarding the default Gantt region, see User Settings.

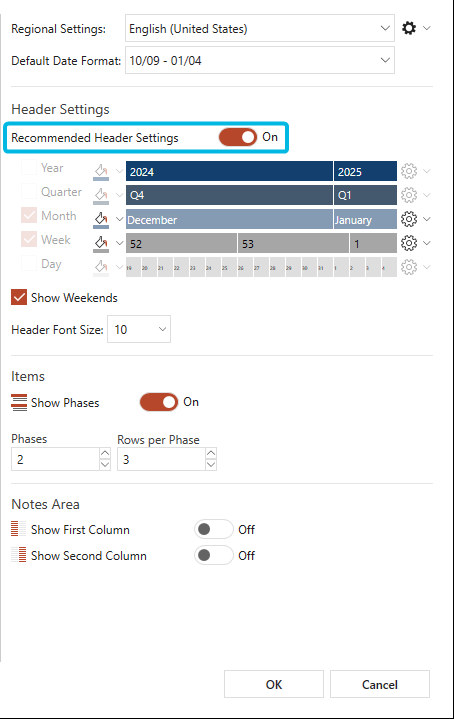

If you want to use the default header settings, switch the toggle button for Recommended Header Settings to On (Figure 841, “Toggle Button for Recommended Header Settings”).

Figure 841. Toggle Button for Recommended Header Settings

Toggle Button for Recommended Header Settings

If you want to adjust the header settings, switch the toggle button to Off and follow the following steps:

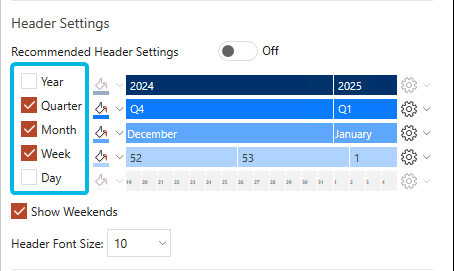

  1. Tick the checkboxes for the units you want to include in the Gantt chart (Figure 842, “Choose Time Units”).

Figure 842. Choose Time Units

Choose Time Units

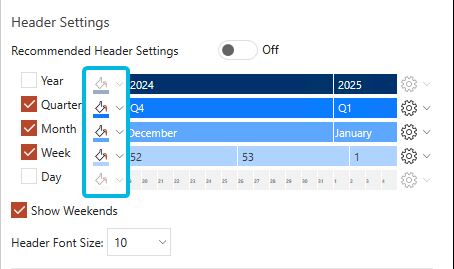

  1. Click on the painting bucket symbol next to a unit and choose a color (Figure 843, “Choose Colors”).

    This color will be used as fill color for the unit's bars in the Gantt chart.

Figure 843. Choose Colors

Choose Colors

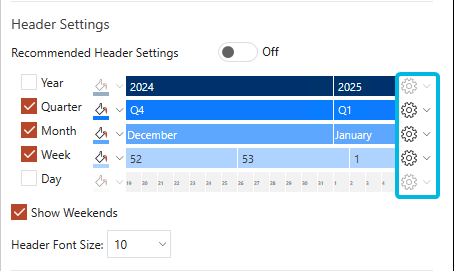

  1. If you enabled the unit Year, click on the gear symbol next to it (Figure 844, “Gear Symbols for Time Units”).

    1. If you want to show vertical lines in the Gantt chart to make the unit more visible, tick the checkbox for Show Vertical Lines.

Figure 844. Gear Symbols for Time Units

Gear Symbols for Time Units

  1. If you enabled the unit Quarter, click on the gear symbol next to it.

    1. If you want to show vertical lines in the Gantt chart to make the unit more visible, tick the checkbox for Show Vertical Lines.

    2. Choose the format in which you want to display the labels.

      You can choose between Short, Number and Company.

  1. If you enabled the unit Month, click on the gear symbol next to it.

    1. If you want to show vertical lines in the Gantt chart to make the unit more visible, tick the checkbox for Show Vertical Lines.

    2. Choose the format in which you want to display the labels.

      You can choose between Automatic, Long Name, Short Name, Letter and Number.

  1. If you enabled the unit Week, click on the gear symbol next to it.

    1. If you want to show vertical lines in the Gantt chart to make the unit more visible, tick the checkbox for Show Vertical Lines.

    2. Choose the format in which you want to display the labels.

      You can choose between Calendar Week, Short Week Start, Long Week Start, Short Week Duration and Long Week Duration.

  1. If you enabled the unit Day, click on the gear symbol next to it.

    1. If you want to show vertical lines in the Gantt chart to make the unit more visible, tick the checkbox for Show Vertical Lines.

    2. Choose the format in which you want to display the labels.

      You can choose between Numbers, Weekdays (m) and Weekdays (Mon).

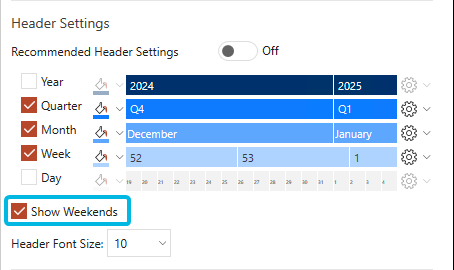

  1. If you want to display weekends in your chart, tick the checkbox for Show Weekends (Figure 845, “Checkbox for Show Weekends”).

Figure 845. Checkbox for Show Weekends

Checkbox for Show Weekends

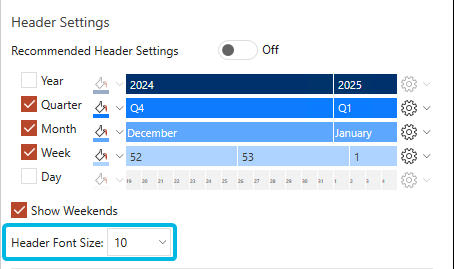

  1. Define the header font size by expanding the drop-down menu for Header Font Size and choosing the size (Figure 846, “Choose Header Font Size”).

Figure 846. Choose Header Font Size

Choose Header Font Size

Note

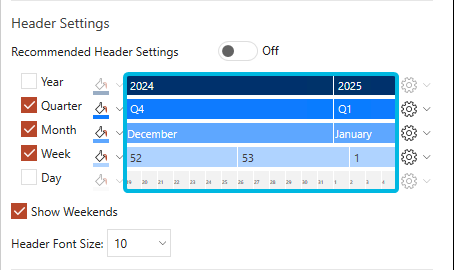

Between the painting bucket symbols and the gear symbol, you can see a preview of what the different time axis levels for the time units will look like in the Gantt chart according to your settings (Figure 847, “Header Preview”).

Figure 847. Header Preview

Header Preview

Note

For further information regarding custom colors, see Use Custom Colors.

To define the content of the Gantt chart, follow the following steps:

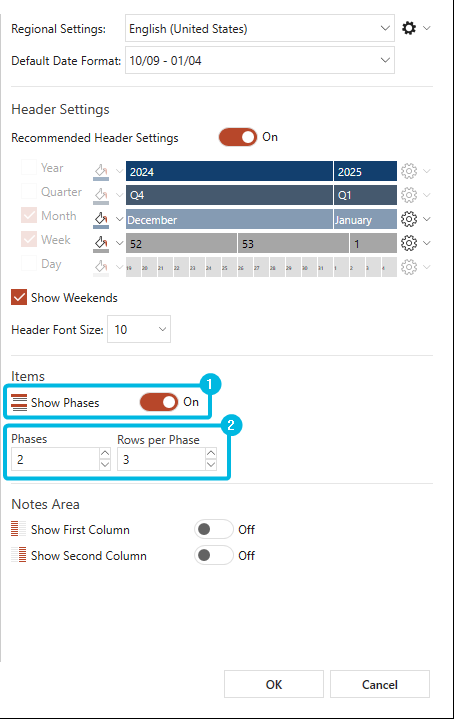

  1. If you want to show phases in your Gantt chart, switch the toggle button for Show Phases to On (Figure 848, “Define Rows and Phases” (1)).

  2. Under Phases, define the number of phases to be displayed (Figure 848, “Define Rows and Phases” (2)).

    Either type in a number or use the arrow symbols to increase or decrease the value.

  3. Under Rows per Phase, define the number of rows to be displayed per phase (Figure 848, “Define Rows and Phases” (2)).

    Either type in a number or use the arrow symbols to increase or decrease the value.

Figure 848. Define Rows and Phases

Define Rows and Phases

Under Notes Area, decide if you want to display the first and the second column, both or none.

To do so, switch the toggle button to On or Off (Figure 849, “Enable and Disable Notes Areas”).

Figure 849. Enable and Disable Notes Areas

Enable and Disable Notes Areas

If you have finished adjusting the settings, click on the button OK to insert the Gantt chart.

Note

If you need more phases or rows while editing the Gantt chart, you can add them directly in the chart.

For further information regarding phases and rows, see Add Rows and Phases.

Note

If you want to enable or disable the notes sections later on, you can access this setting via the button Properties in the action bar.

For further information regarding the properties, see Edit Gantt Chart Properties.
