Use Pictures

Available from Version: -

Operating System: Browser

empower® Add-in: Web Components

To design your Word document, you can use elements from the empower® Library.

For example, you can insert corporate design compliant pictures from your Design Templates.

Note

empower® supports Scalable Vector Graphics (in short SVG) – a common vector-based picture format – as elements in the empower® Library, when you are using an Office version that also supports this file format. Pictures in this format can be scaled to any size without loss of quality and also are quite small in storage size, which makes this format ideal for logos, visualizations, cliparts and non-photorealistic images in general.

Note

Files that are protected either by the Office built-in document protection or by Microsoft Purview Information Protection cannot be processed by empower®.

Files with Microsoft Purview Information Protection labels similar to Public can be processed.

For further information regarding Microsoft Purview Information Protection, see Protect your sensitive data with Microsoft Purview.

Insert Pictures

To insert a picture into your document, follow the following steps:

  1. In the empower® Ribbon, click on the button Library (Figure 142, “Button Library”).

    The library opens in a sidepane on the right-hand side of your browser window.

  2. In the library, navigate to the section Design Templates.

  3. Then, navigate into the section Pictures.

  4. Find the picture you want to insert and select it.

Figure 142. Button Library

Button Library

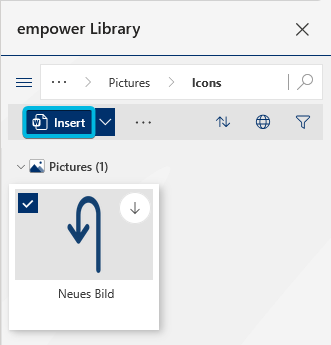

  1. Click on the button Insert (Figure 143, “Button Insert”).

Figure 143. Button Insert

Button Insert
