App Registration Settings for SSO for empower® Mails Online

Adjust Existing App Registration

In production, it is not necessary to create a new app registration as there’s already an existing empower® app registration, which is also used by the empower® Sync or the empower® backend (e.g. for the directory sync), that can be adapted.

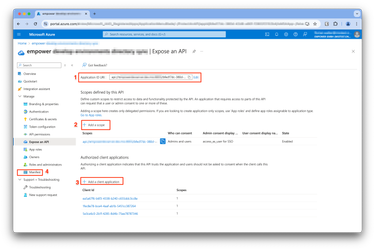

In total, 4 settings need to be changed in order to configure SSO in the existing app registration:

• Add and configure an Application ID URI
• Add and configure scopes
• Add and configure authorized client applications
• Set the required access token version

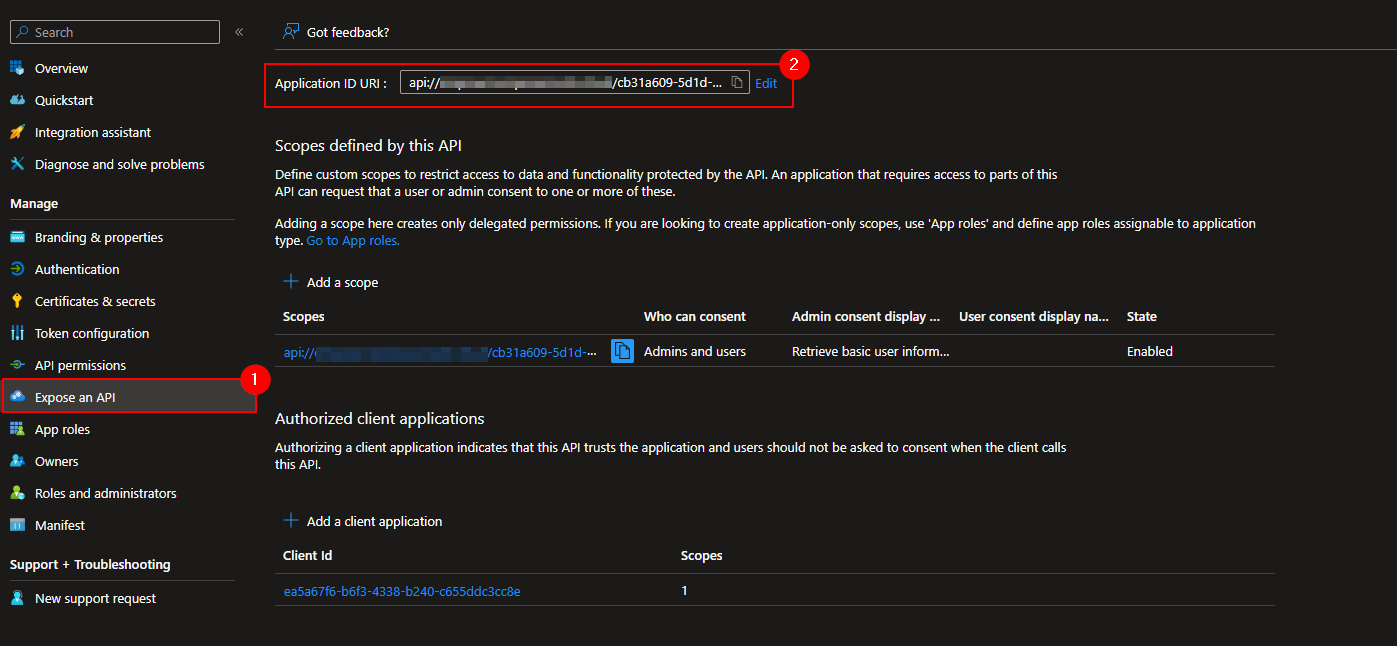

Add and configure an Application ID URI

Select the designated Microsoft Entra ID App Registration

• Navigate to Expose an API
• Click on Add right next to Application ID URI
• By default, it is generated in the form of api://<applicationId>
• Change the API URI to reflect the following schema
  api://<fullyQualifiedDomainName>/<applicationId>

<applicationId> is the unique identifier of the app registration (aka client ID). <fullyQualifiedDomainName> is the endpoint from which the backend (and specifically our web sync) is hosted. If that contains a port number, include it as well.

Example:

If your empower® Web App is accessible at: https://empower.empowersuite.cloud/empower/websync/app and your existing app registration has application ID: bfed17dc-380d-42d8-a90f-f2802f2152b4  then your application ID URI would be: api://empower.empowersuite.cloud/bfed17dc-380d-42d8-a90f-f2802f2152b4

Please note:

Find additional information on that topic here: https://learn.microsoft.com/en-us/office/dev/add-ins/develop/register-sso-add-in-aad-v2#expose-a-web-ap

Make sure the <fully-qualified-domain-name> matches the host name of the instance of your empower® installation. Note the api:// prefix. Note down the application ID and application ID URI as they will be used for configuring SSO when installing the empower® Web Sync.

Pleas note:

Provide us with the application ID and application ID URI if you are hosting empower® in your own corporate cloud.

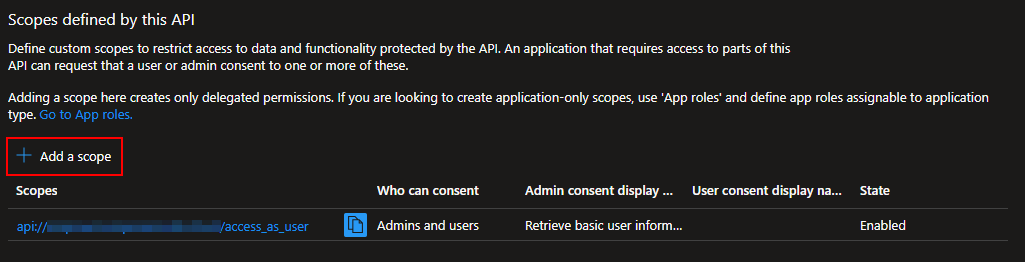

Add and configure scopes

Click on Add a scope.

1. Set the Scope name to access_as_user
2. Set the Admin consent display name to Retrieve basic user information
3. Set the Admin consent description to Allow empower® to access basic information on behalf of the Office user to identify them in add-ins that support Single Sign-On

Please note:

Find additional information here: https://learn.microsoft.com/en-us/office/dev/add-ins/develop/register-sso-add-in-aad-v2#add-a-scope

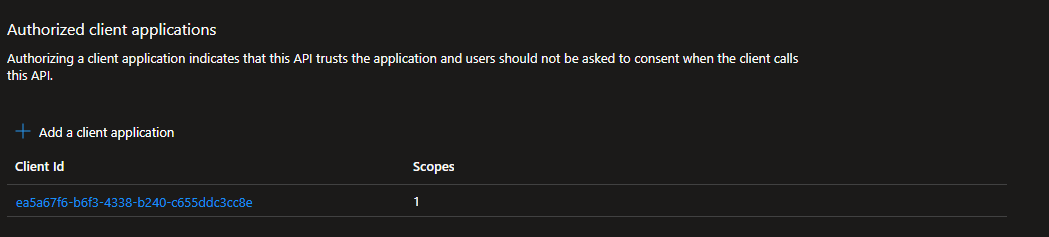

Add and configure authorized client applications

Add the following 3 client IDs to the list of authorized client applications.

These GUIDs are predefined clients from Microsoft that bundle a selection of Microsoft Office applications:

• ea5a67f6-b6f3-4338-b240-c655ddc3cc8e (All Office Applications)
• 1fec8e78-bce4-4aaf-ab1b-5451cc387264 (Teams Desktop + Mobile)
• 5e3ce6c0-2b1f-4285-8d4b-75ee78787346 (Teams Web)

Please note:

Find additional information as well as the id ↔︎ product mapping here: https://learn.microsoft.com/en-us/office/dev/add-ins/develop/register-sso-add-in-aad-v2#add-a-scope (Section 5).

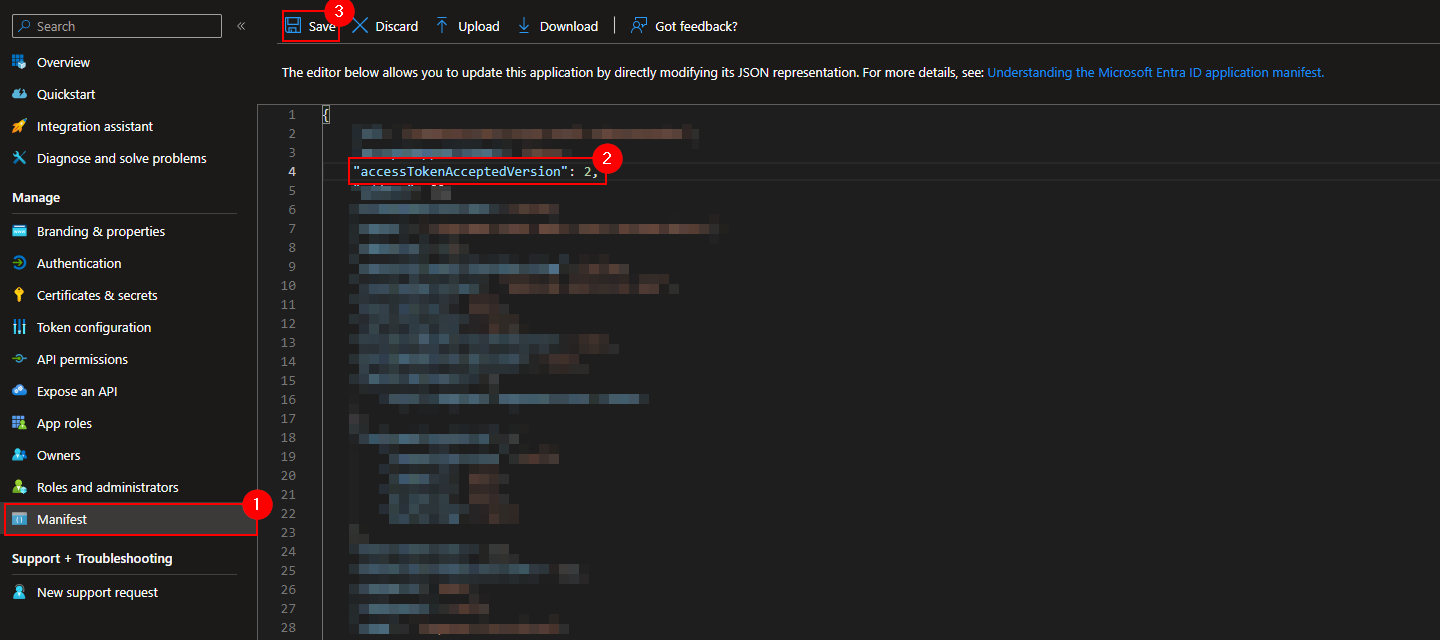

Set the required access token version

This setting cannot be set via the UI and has to be set directly via the manifest.

1. Click on Manifest
2. Change the value of accessTokenAcceptedVersion
3. By default, it is set to null and must be set to 2: "accessTokenAcceptedVersion": 2,
4. Click save

Please note:

Find additional information here: https://learn.microsoft.com/en-us/entra/identity-platform/reference-app-manifest#accesstokenacceptedversion-attribute.
